Products / Forged wheels for passenger vehicles / PF-07 MESH

PF07

Reference unit price / USD$495 / wheelEstimated total $1,980 / 4 wheels
Wheel construction

Available diameters · 16″–24″

Diameter
Colour

Finish process & centre cap

Complex machining requires sales assessment. Any surcharge will be listed in the formal quotation.

Wheel base price
$495 / wheel
Special process
$0 / wheel
Centre cap / accessory
$0 / wheel
Quantity price tier
4 wheels +
Reference unit price / USD
$495 / wheel
Quantity (sets)

1 set = 4 wheels; minimum 4 wheels. Quantity prices apply automatically from 8 and 20 wheels.

Your configuration16″ · 1-piece · 深空灰 · Standard finish · Standard centre cap · 4 wheelsEstimated total $1,980
Check vehicle fitment

USD reference prices exclude tax and shipping. Design, vehicle fitment and final costs are confirmed in the formal quotation.

DESIGN & ENGINEERING

Let the structure be
The purest expression.

PF07 is supported only by a distant three-quarter vehicle photograph showing dark multi-spoke wheels on a white coupe under warm sunset light. The product page itself displays a CSS wheel placeholder, so the evidence photograph is not described as its raster hero. Exact spoke or opening count and finer geometry are intentionally unstated. 19x9 5x112 remains a discussion reference subject to vehicle-specific engineering.

Reference Weight
To be confirmed by size and specification
Recommended Application
Luxury Saloons / GT Cars

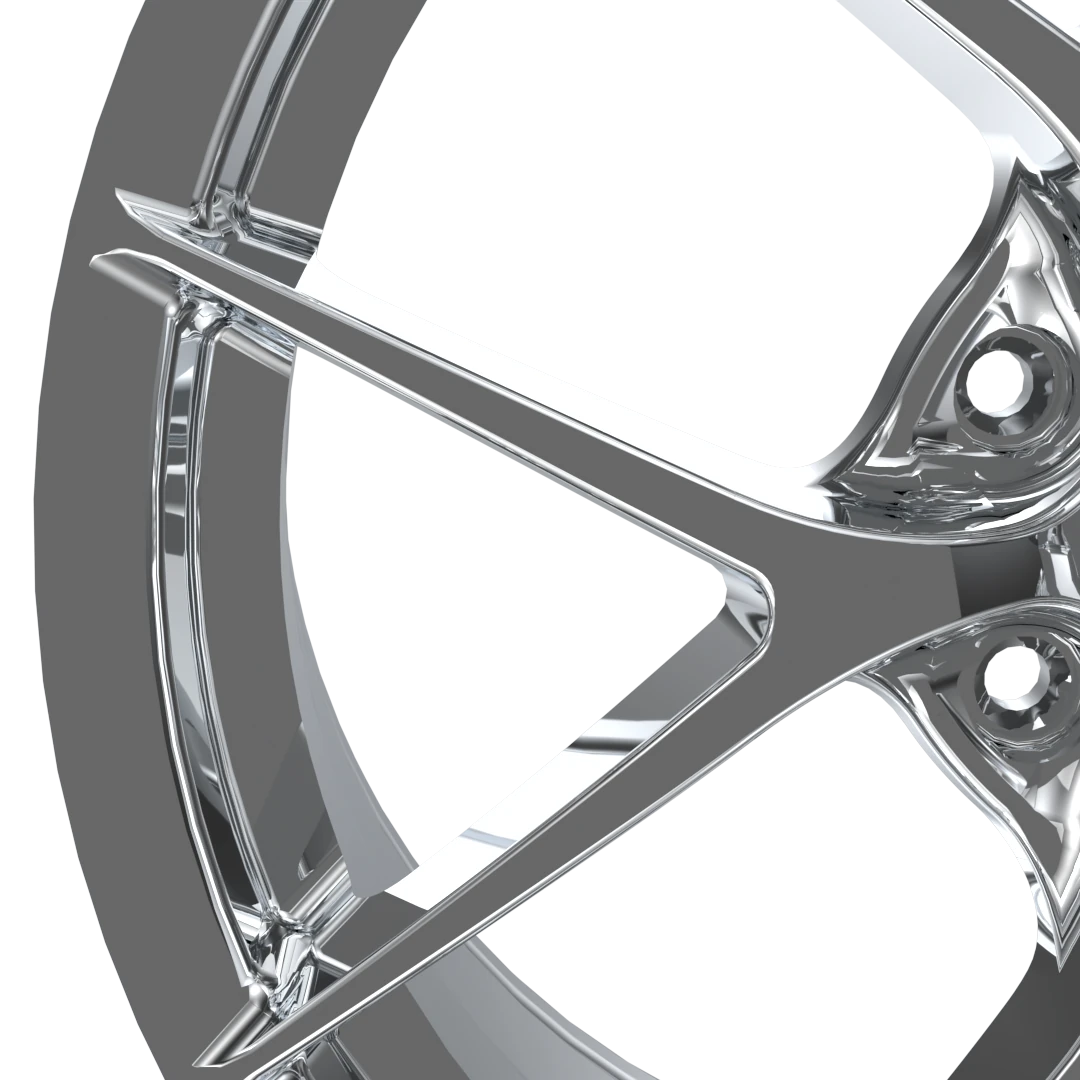

LSW LSLUX001 forged wheel spoke structure and surface process details
Detail close-up / SPOKESpoke process details02 / LSLUX001

Surface finishing

Surface finishing

Color samples will vary due to screen and light, and the final color palette shall prevail.

Colour Sample
Deep Space Grey
Colour Sample
Champagne Gold
Colour Sample
Bright Silver
Surface & corrosion guide

Engineering Data

Structured Specification

Need help with fitment?
Available Diameters
16″–24″
Width capability
Customized according to car model, tires and posture
PCD
Vehicle-specific (5-lug)
Offset (ET)
Engineering confirmation by vehicle
Centre Bore (CB)
Machined to the vehicle application
Reference Weight
To be confirmed by size and specification
Brake Clearance
Large-brake clearance review supported
Material
6061-T6 Aluminium Alloy
Certification Status
Available by specific specification and batch
Delivery time
Subject to the formal engineering quotation
Accessories
Centre caps included; bolts and valve stems are confirmed with the specification

The above are the current product capability range and project pre-approval fields, and precise values ​​are not generated by runtime formulas. The final PCD, ET, center hole, load, braking clearance and certification scope are subject to the vehicle model drawings and official quotation.

Certification Documentation

Testing and documents

Structural verification covers radial fatigue, bending fatigue and impact testing. The specific applicable specifications are subject to product information.

View verification system

Included and Optional

Accessories and delivery time

Centre caps included; bolts and valve stems are confirmed with the specification. Subject to the formal engineering quotation.

Ask About Configuration and Lead Time

Documents

Specifications and instructions

Product information such as dimensions, loads, installation instructions and maintenance recommendations are available upon request.
